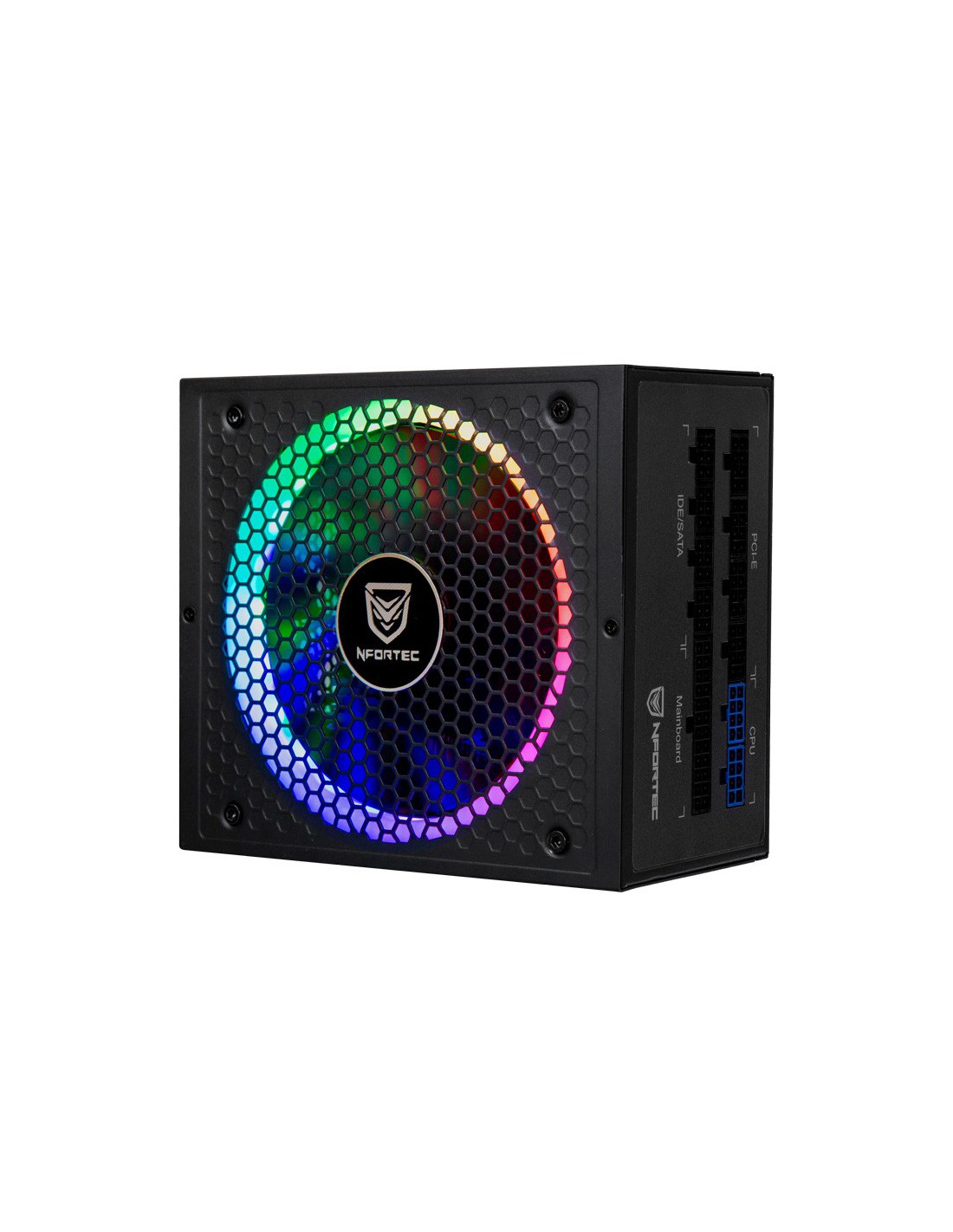

Sagitta - RGB Gold Modular Power Supply
Introducing Nfortec Sagitta, the new RGB modular power supply with 80 Plus Gold certification.
MODEL | SAGITTA 750W |
Dimensions | 150mm x 86mm x 170mm |
Format | ATX |
Weight | 2,7Kg |
Ports and interfaces | Power supply for motherboard: 20+4 pin ATX, Length 600mm |
EPS power connector (8-pin), Length 600mm | |
PCI Express power connectors (6 + 2 pin): 2, Length 550mm | |
SATA power connectors: 8, Length 500mm | |
Power Connectors (4 pin) peripherals (Molex): 3, Length 500mm | |
Additional FDD connector | |
Type of Wiring | Modular |
Energy Control | Total power: 750 W |
AC input voltage: 100 - 240 V | |
AC input frequency: 47-63 Hz | |
Input current: 12-6 A | |
Combined power (3.3 V): 100 W | |
Combined power (+12 V): 720 W | |
Combined power (+5 V): 100 W | |
Combined power (-12V): 18.5 W | |
Combined power (+5 VSB): 18,5 W | |
Maximum output current (+3.3V): 20 A | |
Maximum output current (+12V): 60 A | |
Maximum output current (+5V): 20 A | |
Maximum output current (-12V): 0.5 A | |
Maximum output current (+5Vsb): 2.5 A | |
Protections | Overvoltage (OVP), Short circuit (SCP), Undervoltage (UVP), Overvoltage (OPP) Overcurrent (OCP) |
80 PLUS Certification | 80+ GOLD (Efficiency 90%) |
Cooling | Fan diameter: 14 cm |
Number of fans: 1 Fan | |
Fan location: Top | |
Cooling type: Active | |
Content included | SAGITTA (1) |
QR Manual (1) | |
Power cable (1) |
MODEL | SAGITTA 750W |
Dimensions | 150mm x 86mm x 170mm |
Format | ATX |
Weight | 2.7Kg |
Ports and interfaces | Power supply for motherboard: 20+4 pin ATX, Length 600mm |
EPS power connector (8-pin), Length 600mm | |
PCI Express power connectors (6+2 pin): 2, Length 550mm | |
SATA power connectors: 8, length 500mm | |
Power connectors (4-pin) peripheral (Molex): 3, Length 500mm | |
Additional FDD connector | |
Wiring Type | Modular |
Power Control | Total power: 750 W |
AC Input Voltage: 100 - 240 V | |
AC Input Frequency: 47-63 Hz | |
Input current: 12-6 A | |
Combined power (3.3 V): 100 W | |
Combined power (+12 V): 720 W | |
Combined power (+5V): 100 W | |
Combined power (-12V): 18.5 W | |
Combined power (+5 VSB): 18.5 W | |
Maximum output current (+3.3V): 20 A | |
Maximum output current (+12V): 60 A | |
Maximum output current (+5V): 20 A | |
Maximum output current (-12V): 0.5 A | |
Maximum output current (+5Vsb): 2.5 A | |
Protections | Over voltage (OVP), Short circuit (SCP), Under voltage (UVP), Over voltage (OPP) Over current (OCP) |
80 PLUS Certification | 80+ GOLD (90% Efficiency) |
Cooling | Fan diameter: 14 cm |
Number of fans: 1 Fan | |
Fan Location: Top | |
Cooling Type: Active | |
Included Contents | SAGITTA (1) |
QR Manual (1) | |
Power cable (1) |
