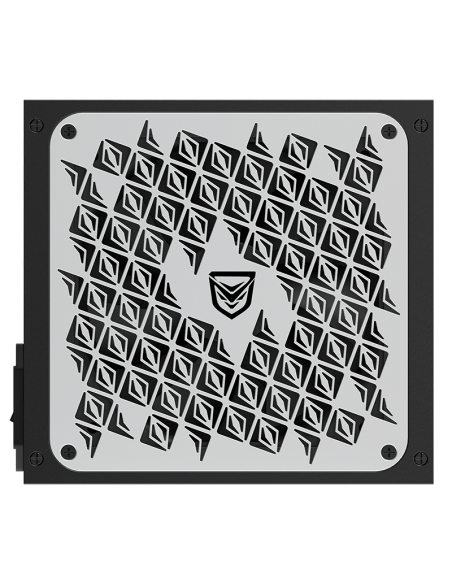

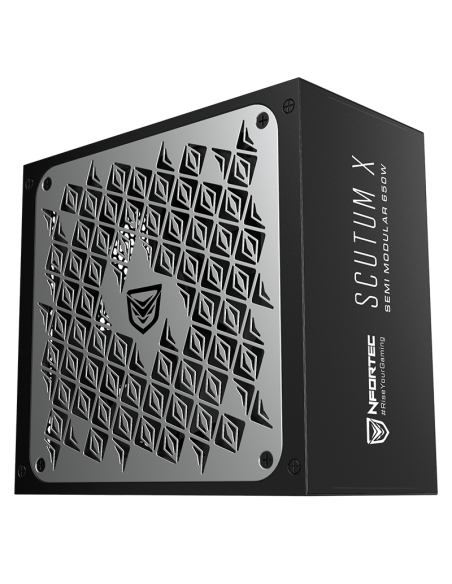

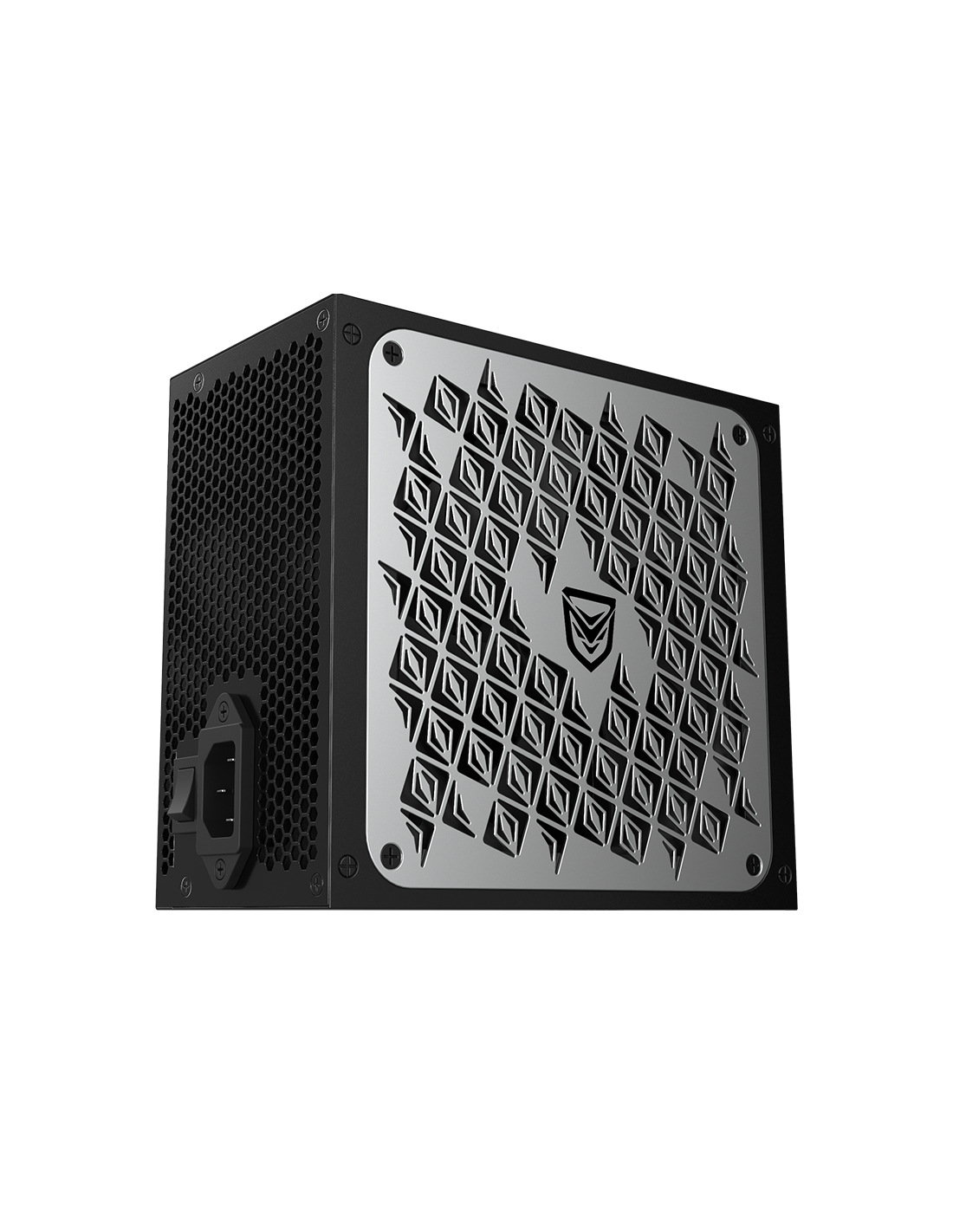

    Nfortec SCUTUM X SemiMod 850W PC Power Supply 80+ Bronze

    PC power supply 80+ Bronze seme modular

    The Scutum X power supply series is now extended with the seme modular model, also available in: 650, 750 and 850W. Scutum X semi modular is 80+ Bronze certified and guarantees optimized cooling for your computer. Connect only the cables you need and keep your tower tidy and visually clean

    Power

    Out of stock
    €79.95
    Tax included

    100% secure payments

    Cleanliness in wiring installation

    The new power supply Nfortec Scutum X semi modular comes to meet the requirements of the new generations of computers, with the ability to maintain its performance at 100% with an energy efficiency of over 85%. The Scutum X semi-modular PC power supply arrives with improved aesthetics adapted to the trends, with all the improvements that make it a safe bet to power any setup. Unlike its sister Scutum X, the semi-modular version offers more versatility in cable management, allowing you to connect only what you need and keep a cleaner installation.

    Sustainable and professional performance

    The new Scutum X semi-modular power supply offers you a range of 3 versions (650W, 750W and 850W) so you can choose the one that best suits your configuration. Thanks to its 80+ Bronze certification you will be assured of peak performance with an efficiency of over 85%, so you will not only be giving better power quality to your components but you will also save on power consumption.

    The semi-modular power supply you've been waiting for

    The semi-modular power supply for PCs Nfortec Scutum X has semi-modular wired connections with mesh protection: 1 connection for 24pin motherboard and 2 connections for CPU fixed to the power supply and 2 for graphics card or PCIE, 5 SATA connections and 2 modular MOLEX connections (+ 1 additional for FLOPPY).

    Protect your computer

    The design of our new semi-modular PC power supply has been completely revamped. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up.


    MODELSCUTUM X 850W
    Dimensions153mm x 81mm x 160mm
    FormatATX
    Weight1,65Kg
    Ports and interfaces
    Mainboard power supply: 20+4 pin ATX, Length 550mm Fixed
    EPS power connector (8-pin), Length 680mm Fixed
    PCI Express power connectors (6 + 2 pin): 2, Length 500mm Modular
    SATA power connectors: 7, Length 450mm Modular
    Power Connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular
    Additional S4P connector (FLOPPY)
    Type of WiringSemi modular
    Energy Control
    Total power: 850 W
    AC input voltage: 200 - 240 V
    AC input frequency: 47-63 Hz
    Input current: 5 A
    Combined power (3.3 V): 90 W
    Combined power (+12 V): 768 W
    Combined power (+5 V): 90 W
    Combined power (-12V): 18.5 W
    Combined power (+5 VSB): 18,5 W
    Maximum output current (+3.3V): 15 A
    Maximum output current (+12V): 64 A
    Maximum output current (+5V): 15 A
    Maximum output current (-12V): 0,5 A
    Maximum output current (+5Vsb): 2.5 A
    ProtectionsOver Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
    80 PLUS Certification80+ BRONZE (Efficiency 85%)
    Cooling
    Fan diameter: 14 cm
    Number of fans: 1 Fan
    Fan location: Top
    Cooling type: Active
    Content included
    SCUTUM X (1)
    QR Manual (1)
    Power cable (1)
    Installation screws (4)
    Title Aliexpress
    Nfortec SCUTUM X SemiMod 850W PC Power Supply 80+ Bronze
    Wattage
    850W
    Wiring
    Semi Modular
    80+ Certification
    80+ Bronze
    CPU Cables
    x2
    PCIE cables
    x2
    Nfortec
    NF-PSU-SCUTUMX-SM-850W
    MODELSCUTUM X 850W
    Dimensions153mm x 81mm x 160mm
    FormatATX
    Weight1.65Kg
    Ports and interfaces
    Power supply for motherboard: 20+4 pin ATX, Length 550mm Fixed
    EPS Power Connector (8-pin), Length 680mm Fixed
    PCI Express power connectors (6+2 pin): 2, Length 500mm Modular
    SATA power connectors: 7, Length 450mm Modular
    Power connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular
    Additional S4P connector (FLOPPY)
    Wiring TypeSemi modular
    Power Control
    Total power: 850 W
    AC input voltage: 200 - 240 V
    AC input frequency: 47-63 Hz
    Input current: 5 A
    Combined power (3.3 V): 90 W
    Combined power (+12 V): 768 W
    Combined power (+5 V): 90 W
    Combined power (-12V): 18.5 W
    Combined power (+5 VSB): 18.5 W
    Maximum output current (+3.3V): 15 A
    Maximum output current (+12V): 64 A
    Maximum output current (+5V): 15 A
    Maximum output current (-12V): 0.5 A
    Maximum output current (+5Vsb): 2.5 A
    ProtectionsOver Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
    80 PLUS Certification80+ BRONZE (Efficiency 85%)
    Cooling
    Fan diameter: 14 cm
    Number of fans: 1 Fan
    Fan Location: Top
    Cooling Type: Active
    Included Contents
    SCUTUM X (1)
    QR Manual (1)
    Power cable (1)
    Installation screws (4)
    No reviews
    Clean wiring installation

    The new power supply Nfortec Scutum X semi modular comes to meet the requirements of the new generations of computers, with the ability to maintain its performance at 100% with an energy efficiency of over 85%. The Scutum X semi modular PC power supply arrives with improved aesthetics adapted to the trends, with all the improvements that make it a safe bet to power any setup. Unlike its sister Scutum X, the semi-modular version offers more versatility in cable management, allowing you to connect only what you need and keep a cleaner installation.

    Sustainable and professional performance

    The new Scutum X semi-modular power supply offers you a range of 3 versions (650W, 750W and 850W) so you can choose the one that best suits your configuration. Thanks to its 80+ Bronze certification you will be assured of peak performance with an efficiency of over 85%, so you will not only be giving better power quality to your components but you will also save on energy consumption

    The semi-modular power supply you've been waiting for

    The semi-modular power supply for PC Nfortec Scutum X has semi-modular wired connections with mesh protection: 1 24pin motherboard connection and 2 CPU connections fixed to the power supply and 2 for graphics card or PCIE, 5 SATA connections and 2 modular MOLEX connections (+ 1 additional for FLOPPY)

    Protect your computer

    The design of our new semi-modular PC power supply has been completely renewed. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up
