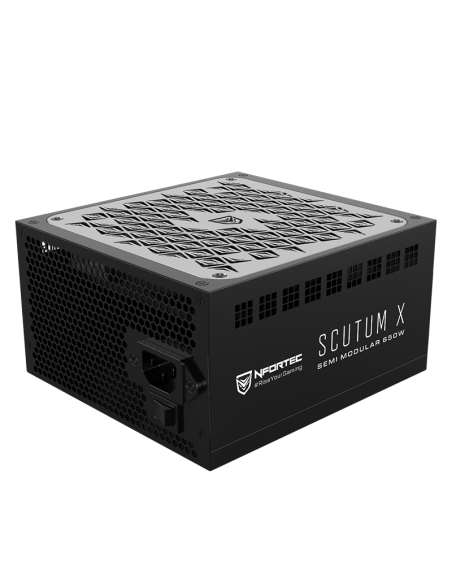

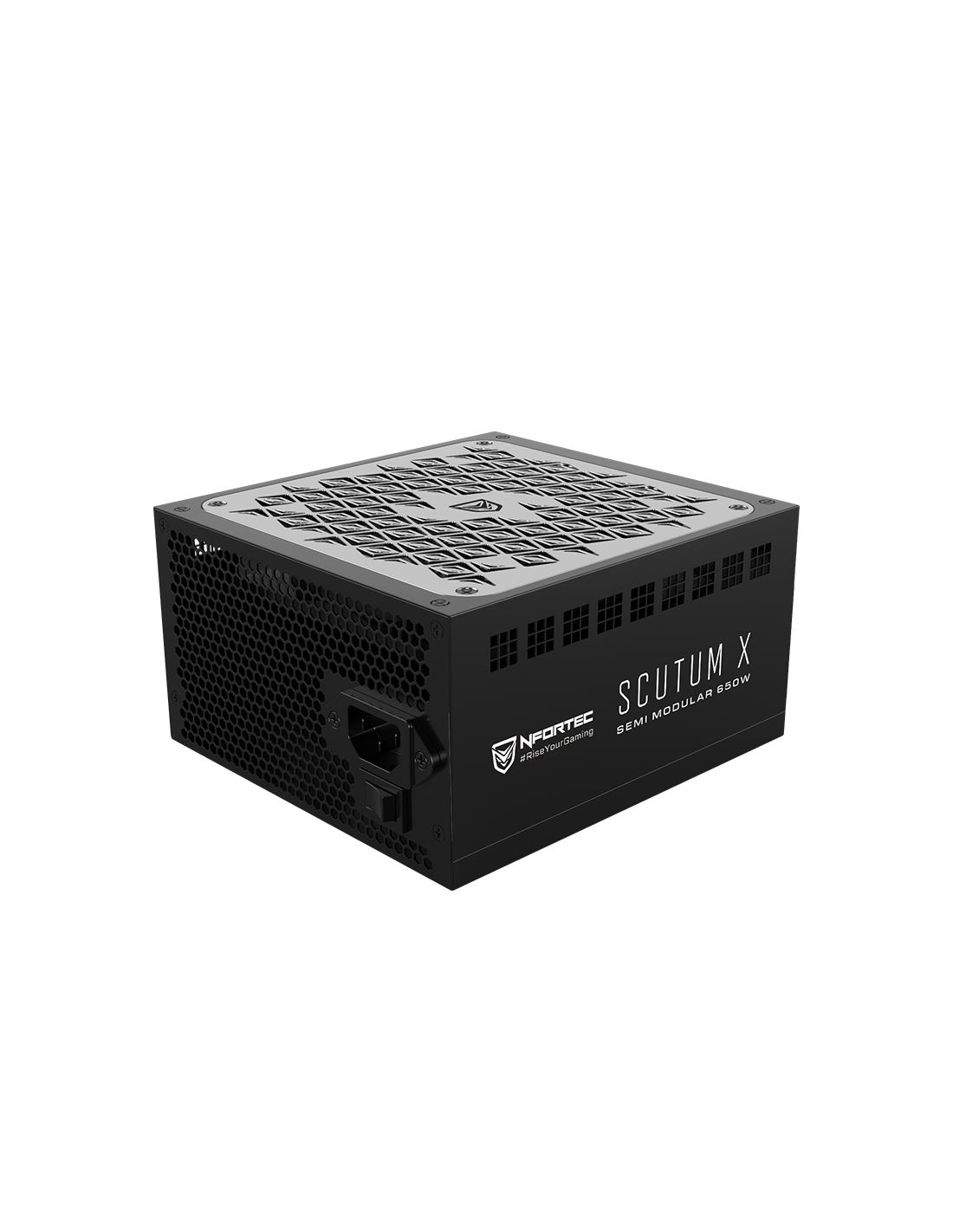

Nfortec SCUTUM X SemiMod 650W PC Power Supply 80+ Bronze

80+ Bronze semi-modular PC power supply

The Scutum X power supply series is now extended with the semi modular model, also available in: 650, 750 and 850W. Scutum X semi modular is 80+ Bronze certified and guarantees optimized cooling for your computer. Connect only the cables you need and keep your tower tidy and visually clean

Power

Description

Cleanliness in wiring installation

The new power supply Nfortec Scutum X semi modular comes to meet the requirements of the new generations of computers, with the ability to maintain its performance at 100% with an energy efficiency of over 85%. The Scutum X semi-modular PC power supply arrives with improved aesthetics adapted to the trends, with all the improvements that make it a safe bet to power any setup. Unlike its sister Scutum X, the semi-modular version offers more versatility in cable management, allowing you to connect only what you need and keep a cleaner installation.

Sustainable and professional performance

The new Scutum X semi-modular power supply offers you a range of 3 versions (650W, 750W and 850W) so you can choose the one that best suits your configuration. Thanks to its 80+ Bronze certification you will be assured of peak performance with an efficiency of over 85%, so you will not only be giving better power quality to your components but you will also save on power consumption.

The semi-modular power supply you've been waiting for

The semi-modular power supply for PCs Nfortec Scutum X has semi-modular wired connections with mesh protection: 1 connection for 24pin motherboard and 2 connections for CPU fixed to the power supply and 2 for graphics card or PCIE, 5 SATA connections and 2 modular MOLEX connections (+ 1 additional for FLOPPY).

Protect your computer

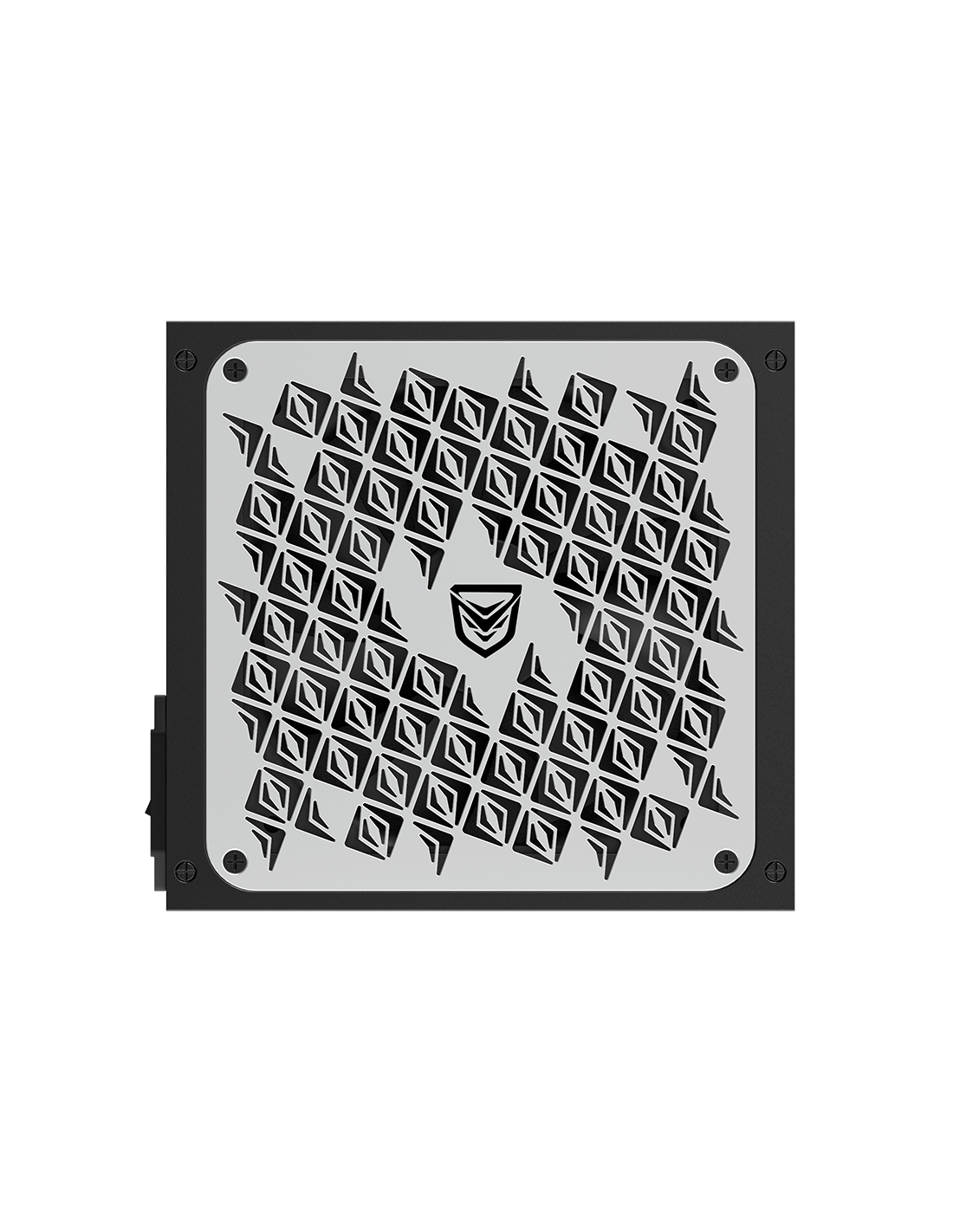

The design of our new semi-modular PC power supply has been completely revamped. Scutum X semi modular is 80+ Bronze certified, ensuring up to 85% efficiency. We have improved its internal components to reinforce safety and integrity over time by using capacitors that perform at a high level. If to all these modifications and improvements we add a cooling through a 140mm fan that dissipates heat through the front metal mesh, we will find ourselves in front of one of the semi-modular PC power supplies that will transmit more security to your set-up.

MODEL	SCUTUM X 650W
Dimensions	153mm x 81mm x 160mm
Format	ATX
Weight	1,45Kg
Ports and interfaces	Power supply for motherboard: 20+4 pin ATX, Length 550mm Fixed
	EPS power connector (8-pin), Length 680mm Fixed
	PCI Express power connectors (6 + 2 pin): 2, Length 500mm Modular
	SATA power connectors: 5, Length 450mm Modular
	Power Connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular
	Additional S4P connector (FLOPPY)
Type of Wiring	Semi modular
Energy Control	Total power: 650 W
	AC input voltage: 200 - 240 V
	AC input frequency: 47-63 Hz
	Input current: 5 A
	Combined power (3.3 V): 90 W
	Combined power (+12 V): 588 W
	Combined power (+5 V): 90 W
	Combined power (-12V): 18.5 W
	Combined power (+5 VSB): 18,5 W
	Maximum output current (+3.3V): 15 A
	Maximum output current (+12V): 49 A
	Maximum output current (+5V): 15 A
	Maximum output current (-12V): 0.5 A
	Maximum output current (+5Vsb): 2.5 A
Protections	Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
80 PLUS Certification	80+ BRONZE (Efficiency 85%)
Cooling	Fan diameter: 14 cm
	Number of fans: 1 Fan
	Fan location: Top
	Cooling type: Active
Content included	SCUTUM X (1)
	QR Manual (1)
	Power cable (1)
	Installation screws (4)

Product Details

Title Aliexpress: Nfortec SCUTUM X SemiMod 650W PC Power Supply 80+ Bronze
Wattage: 650W
Wiring: Semi Modular
80+ Certification: 80+ Bronze
CPU Cables: x1
PCIE cables: x2

Brand Nfortec

Specifications

MODEL	SCUTUM X 650W
Dimensions	153mm x 81mm x 160mm
Format	ATX
Weight	1.45Kg
Ports and interfaces	Power supply for motherboard: 20+4 pin ATX, Length 550mm Fixed
	EPS Power Connector (8-pin), Length 680mm Fixed
	PCI Express power connectors (6+2 pin): 2, Length 500mm Modular
	SATA power connectors: 5, Length 450mm Modular
	Power connectors (4 pin) peripheral (Molex): 2, Length 450mm Modular
	Additional S4P connector (FLOPPY)
Wiring Type	Semi modular
Power Control	Total power: 650 W
	AC input voltage: 200 - 240 V
	AC input frequency: 47-63 Hz
	Input current: 5 A
	Combined power (3.3 V): 90 W
	Combined power (+12 V): 588 W
	Combined power (+5 V): 90 W
	Combined power (-12V): 18.5 W
	Combined power (+5 VSB): 18.5 W
	Maximum output current (+3.3V): 15 A
	Maximum output current (+12V): 49 A
	Maximum output current (+5V): 15 A
	Maximum output current (-12V): 0.5 A
	Maximum output current (+5Vsb): 2.5 A
Protections	Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
80 PLUS Certification	80+ BRONZE (Efficiency 85%)
Cooling	Fan diameter: 14 cm
	Number of fans: 1 Fan
	Fan Location: Top
	Cooling Type: Active
Included Contents	SCUTUM X (1)
	QR Manual (1)
	Power cable (1)
	Installation screws (4)
