Sagitta - RGB Gold Modular Power Supply

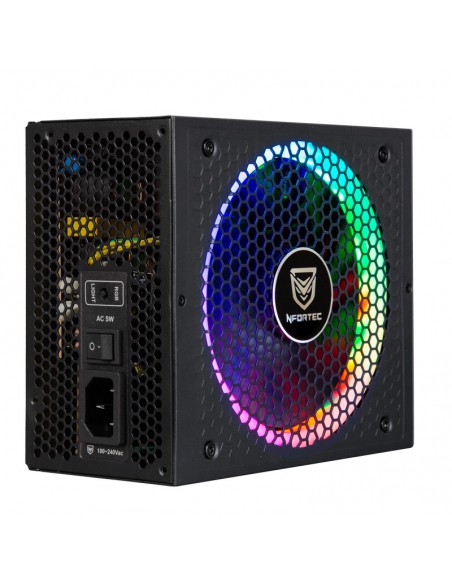

Introducing Nfortec Sagitta, the new RGB modular power supply with 80 Plus Gold certification.
Power
MODEL | SAGITTA 650W |
Dimensions | 150mm x 86mm x 170mm |
Format | ATX |
Weight | 2,7Kg |
Ports and interfaces | Power supply for motherboard: 20+4 pin ATX, Length 600mm |
EPS power connector (8-pin), Length 600mm | |
PCI Express power connectors (6 + 2 pin): 2, Length 550mm | |
SATA Power Connectors: 6, Length 500mm | |
Power Connectors (4 pin) peripherals (Molex): 3, Length 500mm | |
Additional FDD connector | |
Type of Wiring | Modular |
Energy Control | Total power: 650 W |
AC input voltage: 100 - 240 V | |
AC input frequency: 47-63 Hz | |
Input current: 12-6 A | |
Combined power (3.3 V): 100 W | |
Combined power (+12 V): 624 W | |
Combined power (+5 V): 100 W | |
Combined power (-12V): 18.5 W | |
Combined power (+5 VSB): 18,5 W | |
Maximum output current (+3.3V): 20 A | |
Maximum output current (+12V): 52 A | |
Maximum output current (+5V): 20 A | |
Maximum output current (-12V): 0.5 A | |
Maximum output current (+5Vsb): 2.5 A | |
Protections | Overvoltage (OVP), Short circuit (SCP), Undervoltage (UVP), Overvoltage (OPP) Overcurrent (OCP) |
80 PLUS Certification | 80+ GOLD (Efficiency 90%) |
Cooling | Fan diameter: 14 cm |
Number of fans: 1 Fan | |
Fan location: Top | |
Cooling type: Active | |
Content included | SAGITTA (1) |
QR Manual (1) | |
Power cable (1) |
- Title Aliexpress
- Sagitta RGB 650W Full Modular
- Wattage
- 650W
- Wiring
- Modular
- 80+ Certification
- 80+ Gold
- CPU Cables
- x1
- PCIE cables
- x2
MODEL | SAGITTA 650W |
Dimensions | 150mm x 86mm x 170mm |
Format | ATX |
Weight | 2.7Kg |
Ports and interfaces | Power supply for motherboard: 20+4 pin ATX, Length 600mm |
EPS power connector (8-pin), Length 600mm | |
PCI Express power connectors (6+2 pin): 2, Length 550mm | |
SATA power connectors: 6, Length 500mm | |
Power connectors (4 pin) peripheral (Molex): 3, Length 500mm | |
Additional FDD connector | |
Wiring Type | Modular |
Power Control | Total power: 650 W |
AC input voltage: 100 - 240 V | |
AC input frequency: 47-63 Hz | |
Input current: 12-6 A | |
Combined power (3.3 V): 100 W | |
Combined power (+12 V): 624 W | |
Combined power (+5 V): 100 W | |
Combined power (-12V): 18.5 W | |
Combined power (+5 VSB): 18.5 W | |
Maximum output current (+3.3V): 20 A | |
Maximum output current (+12V): 52 A | |
Maximum output current (+5V): 20 A | |
Maximum output current (-12V): 0.5 A | |
Maximum output current (+5Vsb): 2.5 A | |
Protections | Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP) Over Current (OCP) |
80 PLUS Certification | 80+ GOLD (90% Efficiency) |
Cooling | Fan diameter: 14 cm |
Number of fans: 1 Fan | |
Fan Location: Top | |
Cooling Type: Active | |
Included Contents | SAGITTA (1) |
QR Manual (1) | |
Power cable (1) |
una pasada
Una pasada de fuente, te da todo lo que necesitas, no puedes pedir más
muy buena
Es una fuente muy buena a un precio increible, las leds las puedes apagar o rotar entre distintos ciclos. Yo estoy contento con la compra.
increible
Muy buena fuente de alimentación. Se agradece mucho que sea completamente modular. Además con leds rgb, aunque en mi caja van hacia abajo y no se ven
