    Nfortec Vanth PC power supply 80+ Gold Modular 750W

    PC Power Supply 80+ Gold Modular 750W

    A new series of power supplies has arrived in our catalog, Vanth, which, with its features and different versions, is ready to be the crown jewel in performance and energy efficiency. Choose between 650W, 750W and 850W models, all with 80 plus Gold certification, and enjoy the best performance with responsible consumption

    Power

    NF-PSU-VANTH-FM-750W
    Out of stock
    €109.95
    Tax included


    Responsible consumption energy efficiency

    At Nfortec, we are constantly working to offer you updated products that keep up with the latest developments in the sector. That's why here comes Vanth, a power supply with 80 plus Gold certification, which guarantees 90% energy efficiency. This energy optimization is perfect, not only because it ensures the best performance for your components, but also because it makes Vanth an environmentally friendly choice.

    Capacitors for best performance

    The Vanth power supply is available in three versions, 650W, 750W and 850W to suit the power needs of your PC, but all of them share the best features. They feature premium Japanese capacitors, which significantly reduce power loss, and prevent the power supply and PC from overheating. For assured cooling, they have a silent 140mm fan at the top, with intelligent speed control that, together with the exclusive front mesh of Nfortec, will ensure that Vanth maintains a good temperature, adapting to the needs of your PC and prolonging its useful life.

    Modular design compatible with the new generation

    The Vanth series is completely modular, allowing you to simply connect the cabling you really need for your components, avoiding excess cables in your tower. It is ready for the new generation of components, including processors and graphics, both AMD and Intel, including the RTX30 series, which makes it the best choice if you are thinking of making a generational leap to your set-up.

    Electrical protections for increased safety

    Vanth has the most important electrical protections for power supplies: protection against overvoltage, short circuit, overvoltage, overcurrent, or overheating among others. These protections will take care and protect your PC and components, so that nothing slows down the pace of your game, making Vanth one of the safest PC power supplies.

    MODELVANTH 750W
    Dimensions150mm x 86mm x 160mm
    FormatATX
    Weight
    Ports and interfaces
    		1x Power supply for motherboard: 20+4 pin ATX, Length 600mm
    2x EPS power connector (8-pin), Length 700mm
    4x PCI Express power connectors (6 + 2 pin), Length 550mm+150mm
    8x SATA power connectors, Length 550mm + 150mm per connector
    4x Power Connectors (4 pin) peripherals (Molex), Length 550mm + 150mm per connector
    1x FDD additional connector, Length 150mm
    Type of WiringModular
    Energy Control
    		Total power: 750 W
    AC input voltage: 100 - 240 V
    AC input frequency: 47-63 Hz
    Input current: 5.0A
    Combined power 3.3V + 5V: 120 W
    Combined power +12V (MBPH + CPU+ VGA1 + VGA2): 750 W
    Maximum output current (+5V): 22 A
    Maximum output current (+3.3V): 22 A
    Maximum output current (+12VMBPH): 25 A
    Maximum output current (+12VCPU): 25 A
    Maximum output current (+12VVVGA1): 35 A
    Maximum output current (+12VGA2): 35 A
    Maximum output current (-12V): 0.3 A
    Maximum output current (+5Vsb): 2.5 A
    ProtectionsOvervoltage (OVP), Short circuit (SCP), Undervoltage (UVP), Overvoltage (OPP) Overcurrent (OCP) Overheating (OTP)

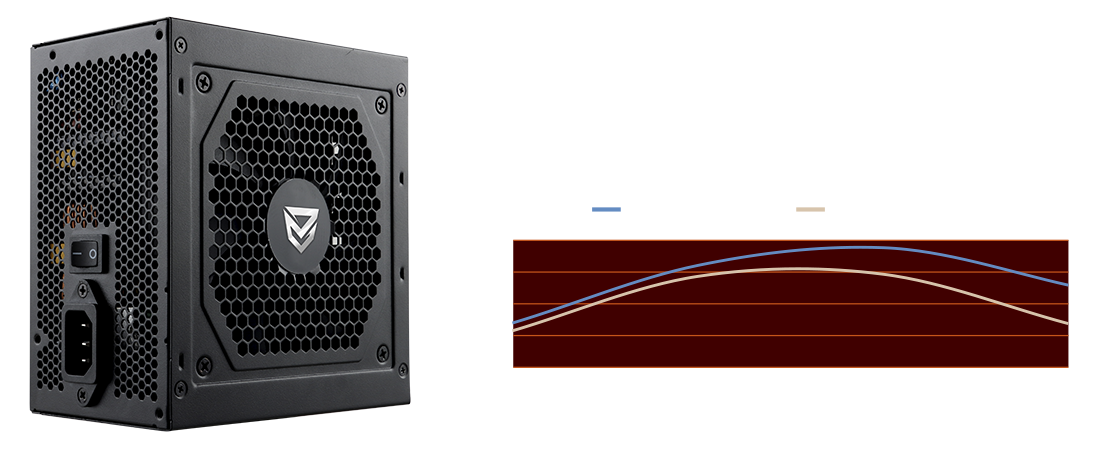

    80 PLUS Certification80+ GOLD (Efficiency 90%)
    Cooling
    		Fan diameter: 14 cm
    Number of fans: 1 Fan
    Fan location: Top
    Cooling type: Active
    Content included
    		VANTH (1)
    QR Manual (1)
    Power cable (1)
    Title Aliexpress
    Nfortec Vanth PC power supply 80+ Gold Modular 750W
    Wattage
    750W
    Wiring
    Modular
    80+ Certification
    80+ Gold
    CPU Cables
    x2
    PCIE cables
    x4
    Nfortec
    MODELVANTH 750W
    Dimensions150mm x 86mm x 160mm
    FormatATX
    Weight
    Ports and interfaces
    		1x Mainboard power supply: 20+4 pin ATX, Length 600mm
    2x EPS power connector (8-pin), Length 700mm
    4x PCI Express power connectors (6+2 pin), Length 550mm+150mm
    8x SATA power connectors, Length 550mm + 150mm per connector
    4x Power Connectors (4 pin) peripheral (Molex), Length 550mm + 150mm per connector
    1x Additional FDD connector, Length 150mm
    Wiring TypeModular
    Power Control
    		Total power: 750 W
    AC input voltage: 100 - 240 V
    AC input frequency: 47-63 Hz
    Input current: 5.0A
    Combined power 3.3V + 5V: 120 W
    Combined power +12V (MBPH + CPU+ VGA1 + VGA2): 750W
    Maximum output current (+5V): 22 A
    Maximum output current (+3.3V): 22 A
    Maximum output current (+12VMBPH): 25 A
    Maximum output current (+12VCPU): 25 A
    Maximum output current (+12VVVGA1): 35 A
    Maximum output current (+12VGA2): 35 A
    Maximum output current (-12V): 0.3 A
    Maximum output current (+5Vsb): 2.5 A
    ProtectionsOvervoltage (OVP), Short circuit (SCP), Under voltage (UVP), Overvoltage (OPP) Overcurrent (OCP) Overheating (OTP)
    80 PLUS Certification80+ GOLD (90% Efficiency)
    Cooling
    		Fan diameter: 14 cm
    Number of fans: 1 Fan
    Fan Location: Top
    Cooling Type: Active
    Included Contents
    		VANTH (1)
    QR Manual (1)
    Power cable (1)

    NFORTEC VANTH 750W 80+ GOLD
    AC INPUTAC100-240V 47-63HZ
    DC OUTPUT+V5+3.3V+12VMBPH+12VCPU+12VVVGA1+12VVVGA2-12V+5VSB
    MAX OUTPUT22A22A25A25A35A35A0.5A2.5A
    MAX COMBINED POWER
    120W
    		300W300W420W420W
    750W
    MAX POWER750W
    DOWNLOAD MANUAL
    No reviews
    Responsible consumption energy efficiency

    At Nfortec, we are constantly working to offer you updated products that keep up with the latest developments in the sector. This is the reason for the arrival of Vanth, a power supply with 80 plus Gold certification, which guarantees 90% energy efficiency. This energy optimization is perfect, not only because it ensures the best performance for your components, but also because it makes Vanth an environmentally friendly option

    Capacitors for the best performance

    The Vanth power supply is available in three versions, 650W, 750W and 850W to suit your PC's power needs, but they all share the best features. They feature premium Japanese capacitors, which significantly reduce power loss, and prevent the power supply and PC from overheating. For assured cooling, they have a 140mm silent fan at the top, with intelligent speed control that, together with the exclusive mesh front of Nfortec, will ensure that Vanth maintains a good temperature, adapting to the needs of your PC and prolonging its life

    Modular design compatible with the new generation

    The Vanth series is completely modular, allowing you to simply connect the cabling you really need for your components, avoiding excess cables in your tower. It is ready for the new generation of components, including processors and graphics, both AMD and Intel, including the RTX30 series, which makes it the best choice if you are thinking of making a generational leap to your set-up

    Electrical protections for increased safety

    Vanth has the most important electrical protections for power supplies: protection against overvoltage, short circuit, overvoltage, overcurrent, or overheating, among others. These protections will take care and protect your PC and components, so that nothing slows down the pace of your game, making Vanth one of the safest PC power supplies
